前言

  • 搜了许多资料，觉得vscode调式c程序的教程有点杂，所以写下这篇博客，使用vscode调用lua源码，版本是lua5.3.6,下载地址为http://www.lua.org/versions.html

正文

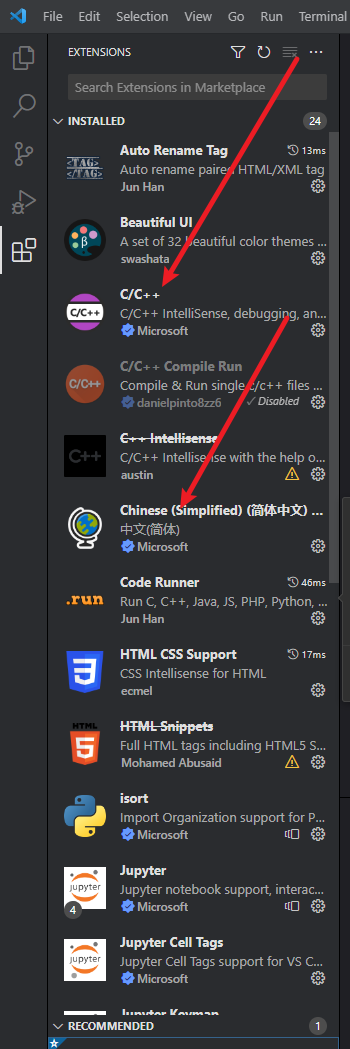

  • vscode的插件准备（有安装code runner的需要禁止用）

    image-20230713213428521-16894751658413

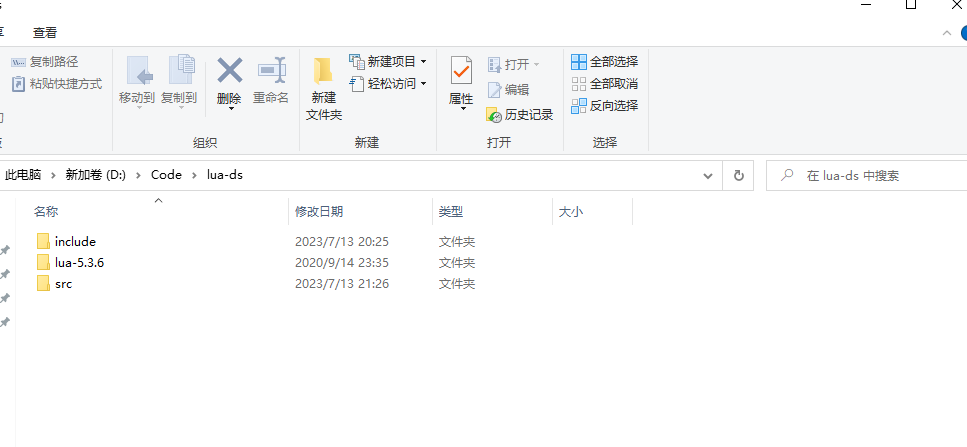

  • 准备一个vscode工程目录如下：

    image-20230713212717098-16894753214594

  • 把lua-5.3.6的源文件复制一份到include文件夹和src，然后使用del *h或del *c删除对应不需要的文件夹。如图：

    image-20230713213040757-16894753562435

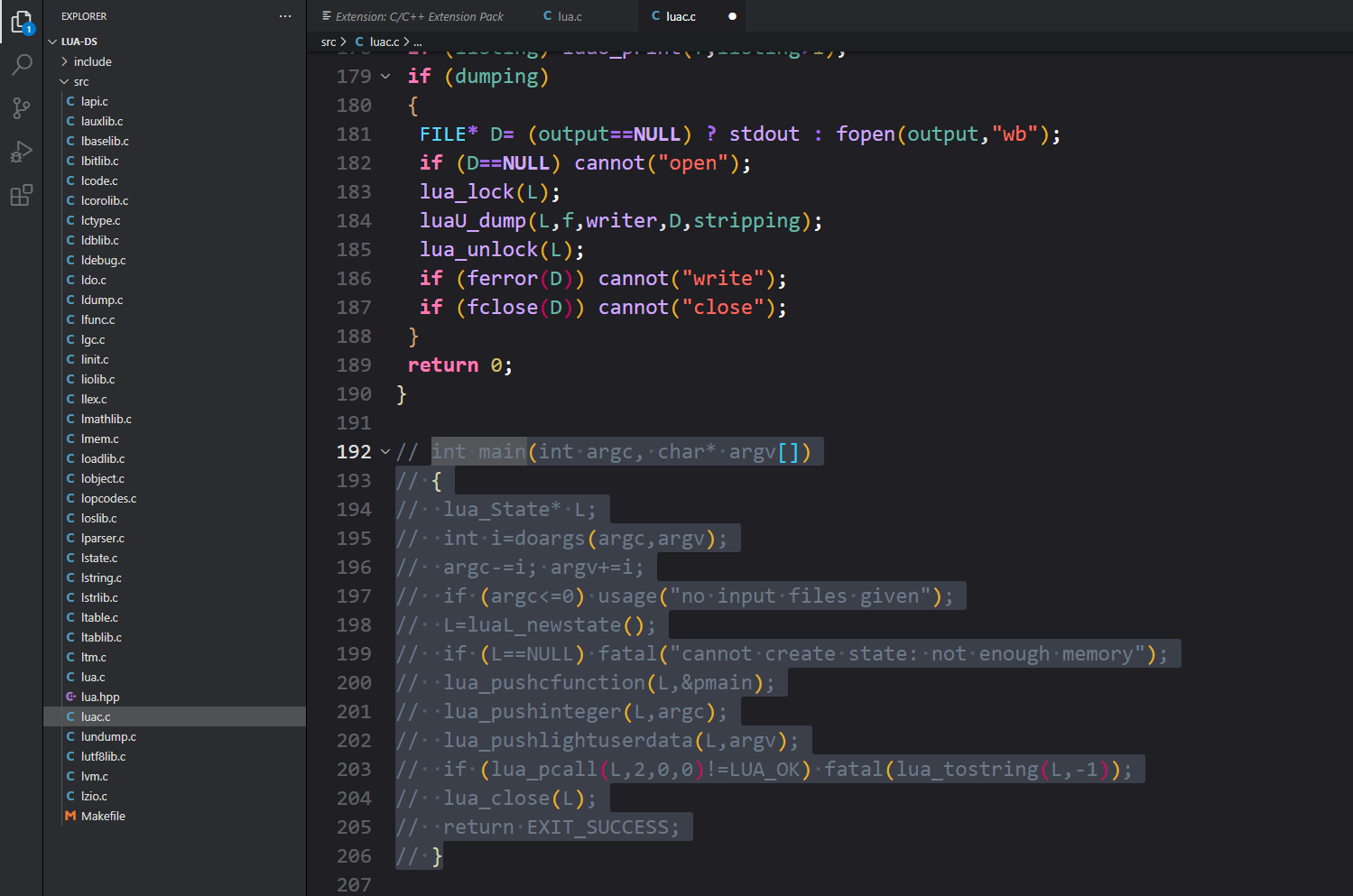

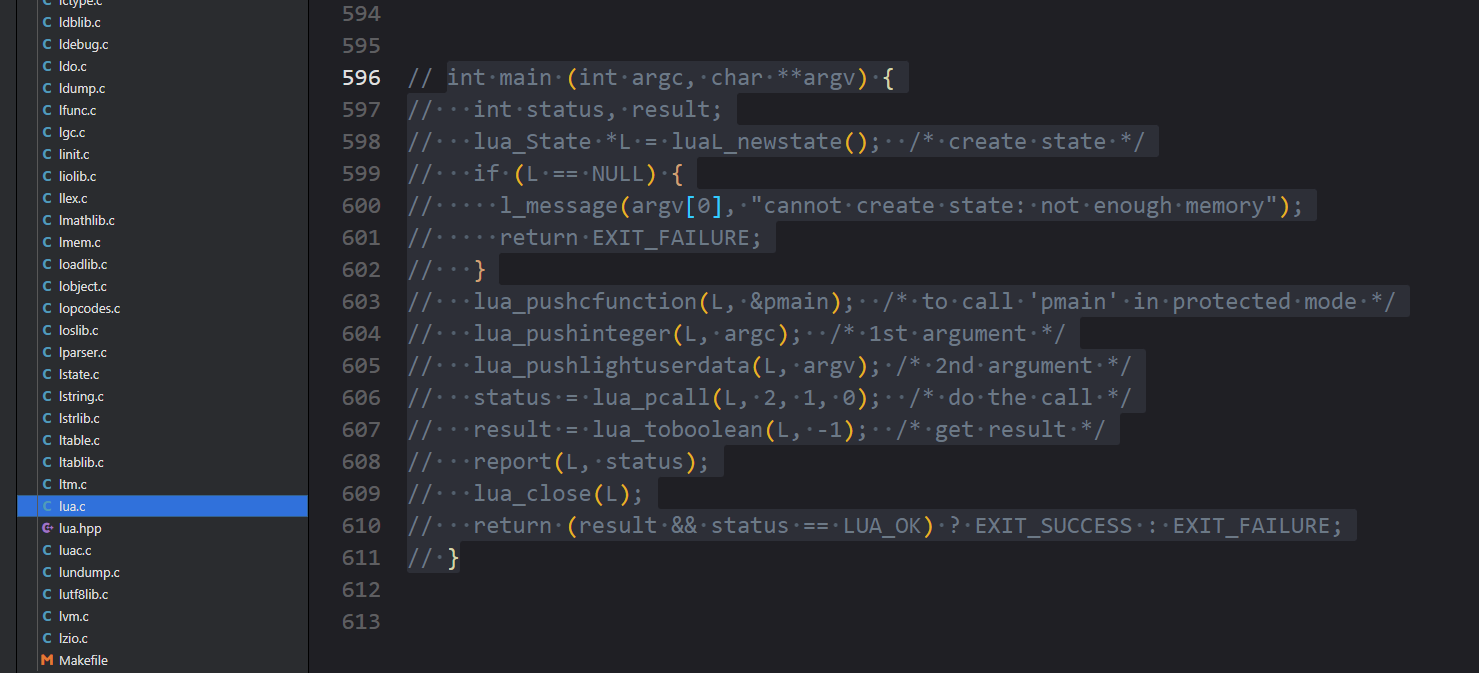

  • 然后需要注释掉lua.c源码的int main和luac.c源码的int main的入口

    image-20230713213755472-16894753784776

    image-20230713213822227-16894753870947

  • vscode调式c配置，首先使用shift+ctrl+p,如下图所示，会生成c_cpp_properties.json文件，如图

    image-20230713214521760-168947541986511

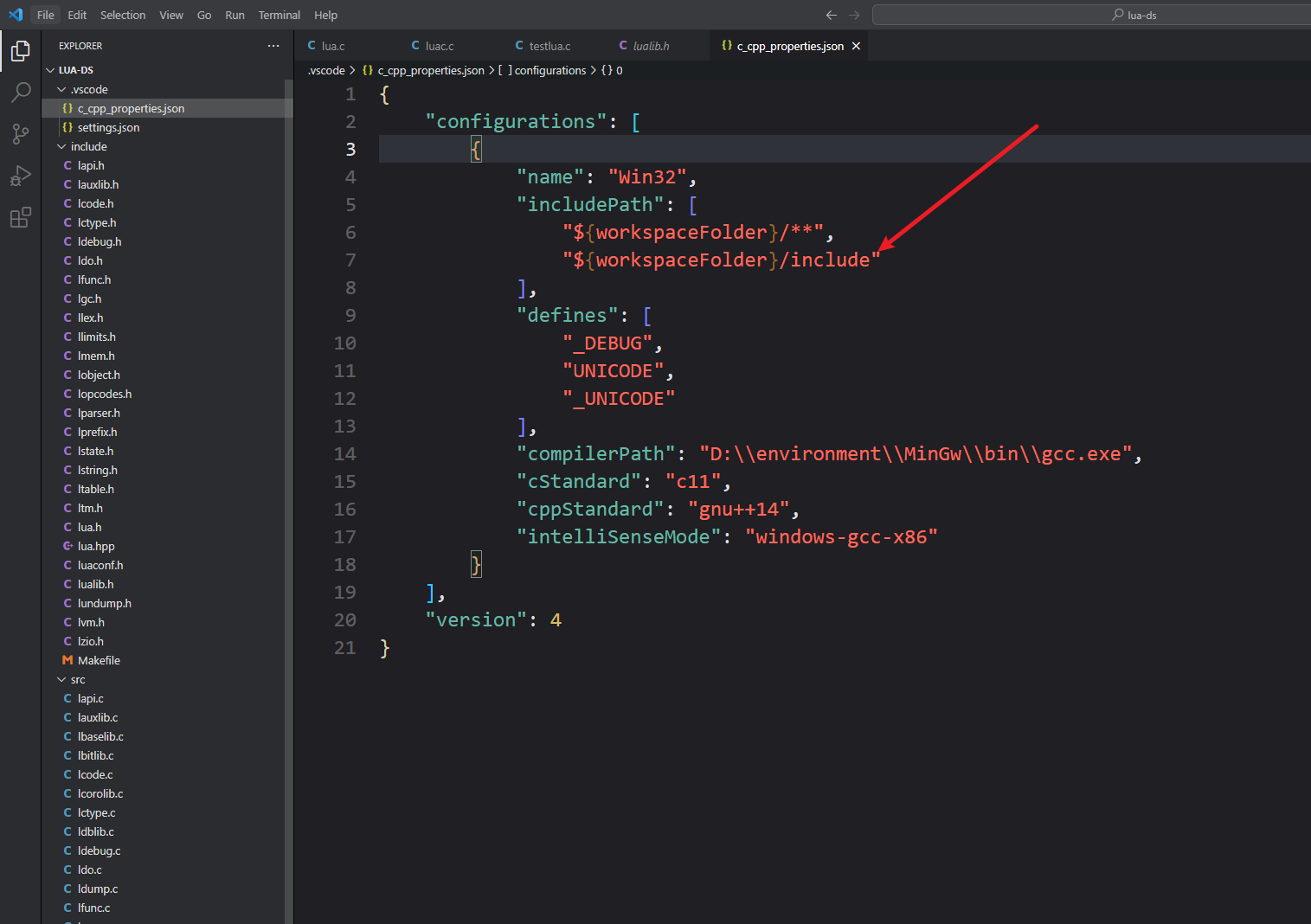

  • 在``文件里添加这一条规则，这样头文件不会是红线了

    image-20230713214804242-168947543491812

  • 接下来配置task.json

    image-20230713214851701

  • task.json的配置如下

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    {
        "version": "2.0.0",
        "tasks": [
            {
                "type": "cppbuild",
                "label": "C/C++: gcc.exe build active file",
                "command": "gcc",
                "args": [
                    "-g",
                    "${workspaceFolder}\\src\\*.c",
                    // "${fileDirname}\\*.c",
                    "-o",
                    "${fileDirname}\\${fileBasenameNoExtension}.exe",
                    "-I",
                    "${workspaceFolder}\\include",

                ],
                "options": {
                    "cwd": "${fileDirname}"
                },

                "group": {
                    "kind": "build",
                    "isDefault": true
                },
                "detail": "compiler: D:\\environment\\MinGw64\\bin\\gcc.exe"
            }
        ]
    }

  • c_cpp_properties.json配置如下

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    {
        "configurations": [
            {
                "name": "Win32",
                "includePath": [
                    "${workspaceFolder}/**",
                    "${workspaceFolder}/include"
                ],
                "defines": [
                    "_DEBUG",
                    "UNICODE",
                    "_UNICODE"
                ],
                "compilerPath": "D:/environment/MinGw64/bin/gcc.exe",
                "cStandard": "c11",
                "cppStandard": "c++11",
                "intelliSenseMode": "windows-gcc-x86"
            }
        ],
        "version": 4
    }

  • 创建如下文件在src里，testlua.c, testlua.lua,对应的内容为

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    #include "lua.h"
    #include "lualib.h"
    #include "lauxlib.h"

    int main()
    {
        lua_State* L = luaL_newstate();
        luaL_openlibs(L);

        luaL_dofile(L, "testlua.lua");

        lua_close(L);

        return 0;
    }
    1
    print("xxx")

  • 开始调试

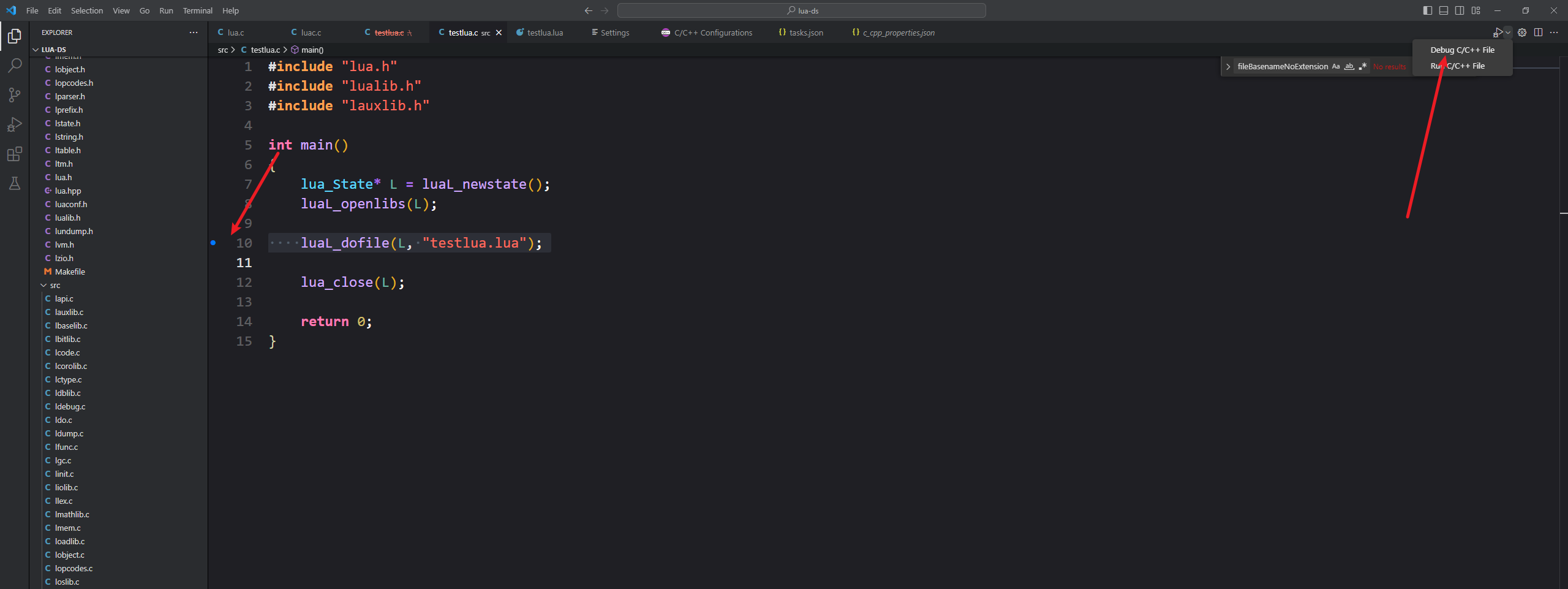

    • 先打断点，如图

      image-20230716145814354

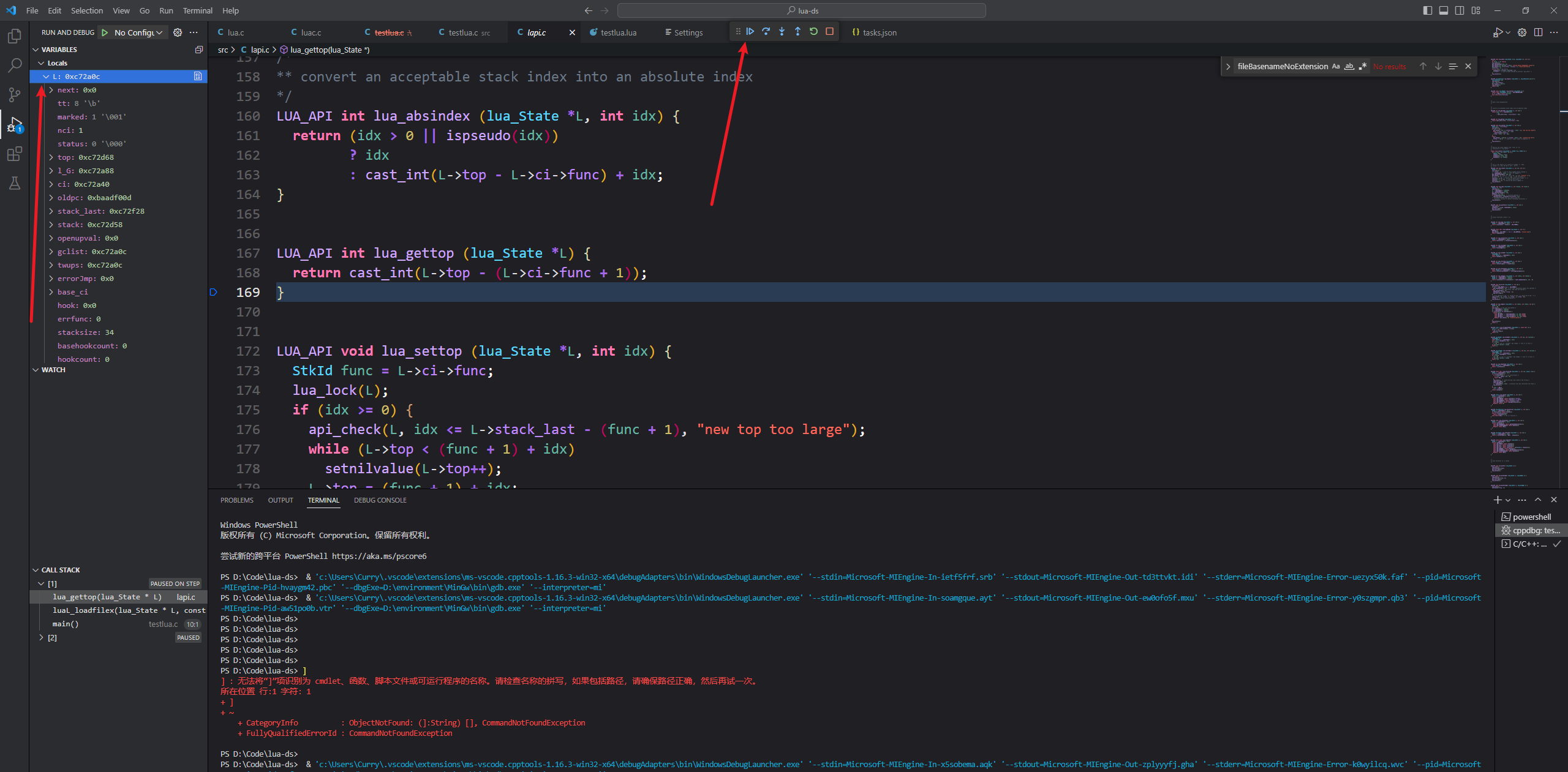

    • 运行如图

      image-20230716150003597
